Stainless steel & special alloy steel
Welcome to Sambu Stainless Forging Co., Ltd., a specialist supplier of stainless steel and special alloy materials.

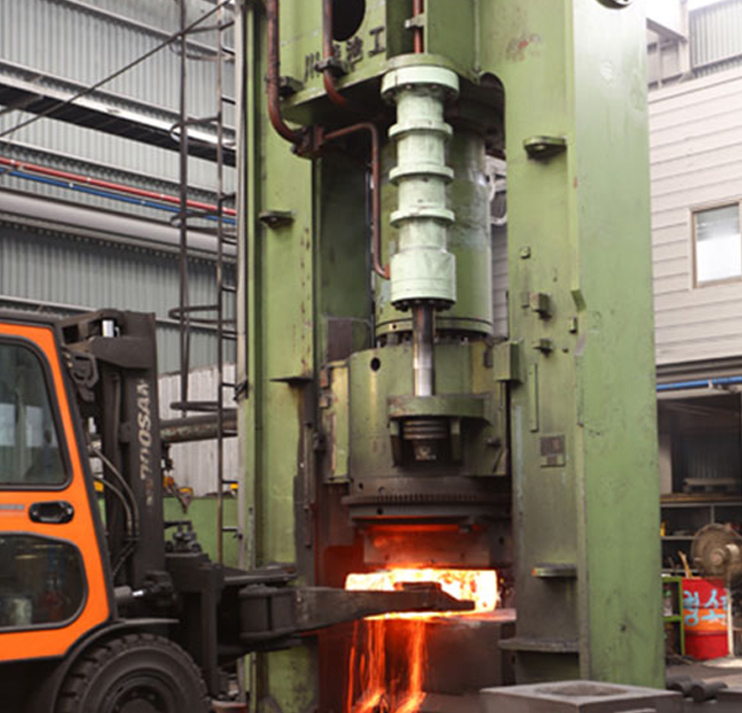

01Press

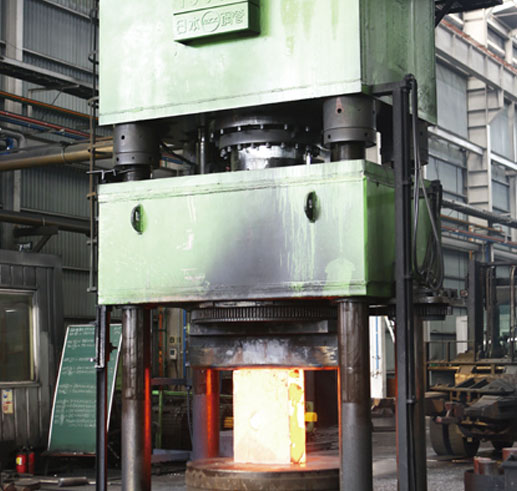

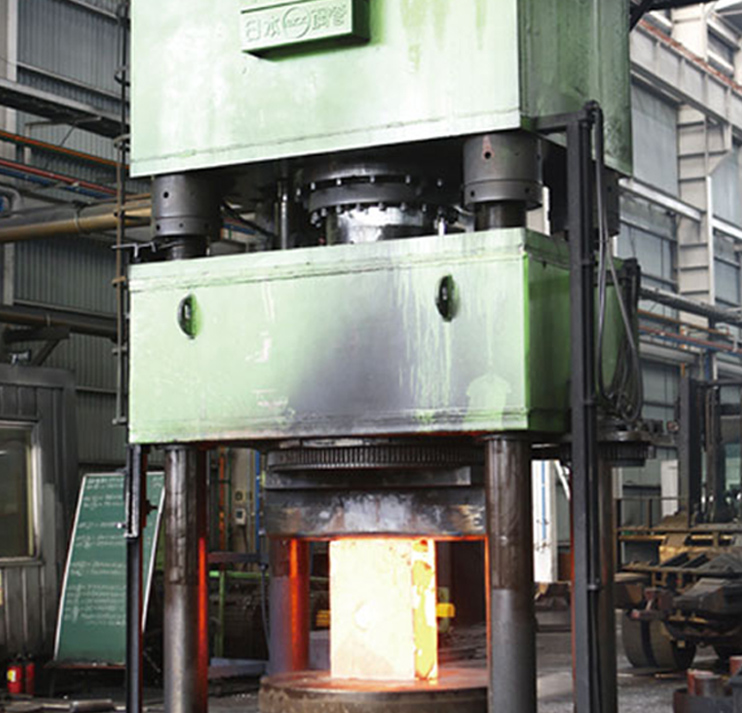

1500 ton Press
1000 ton Press

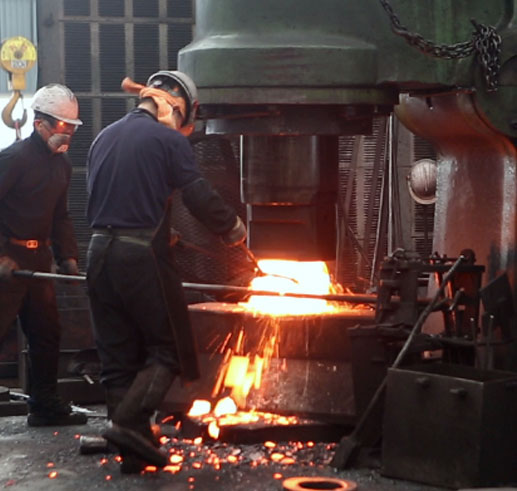

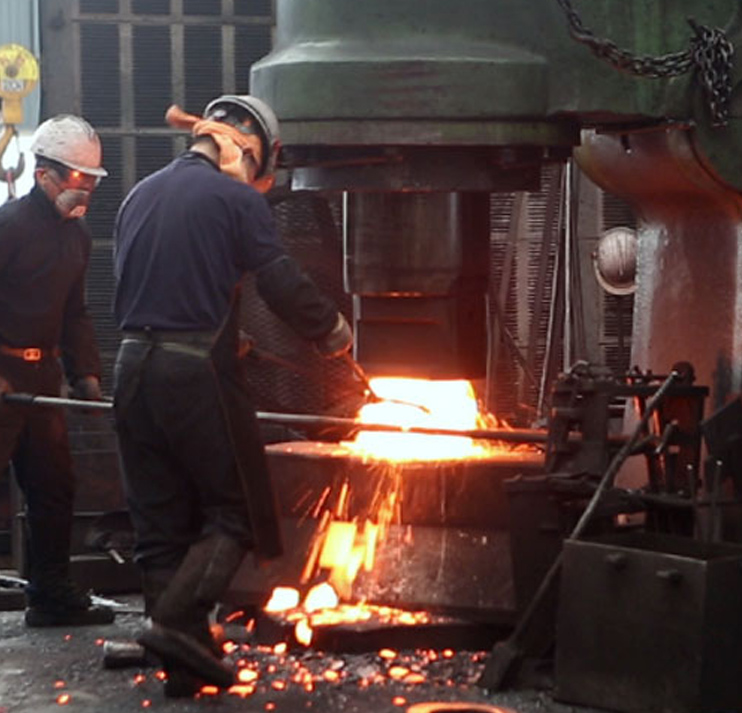

1 ton Press Air-Hammer
02Heat Treatment and Heating Furnace

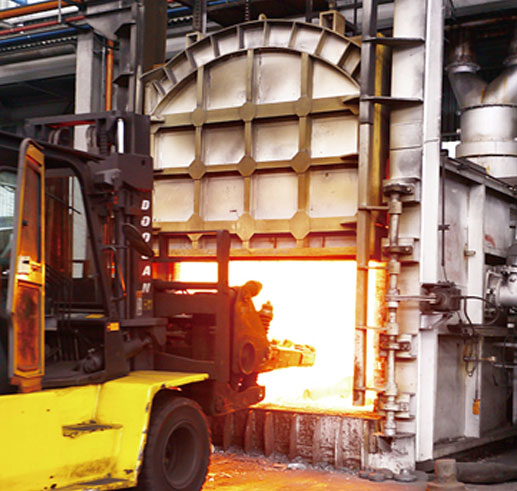

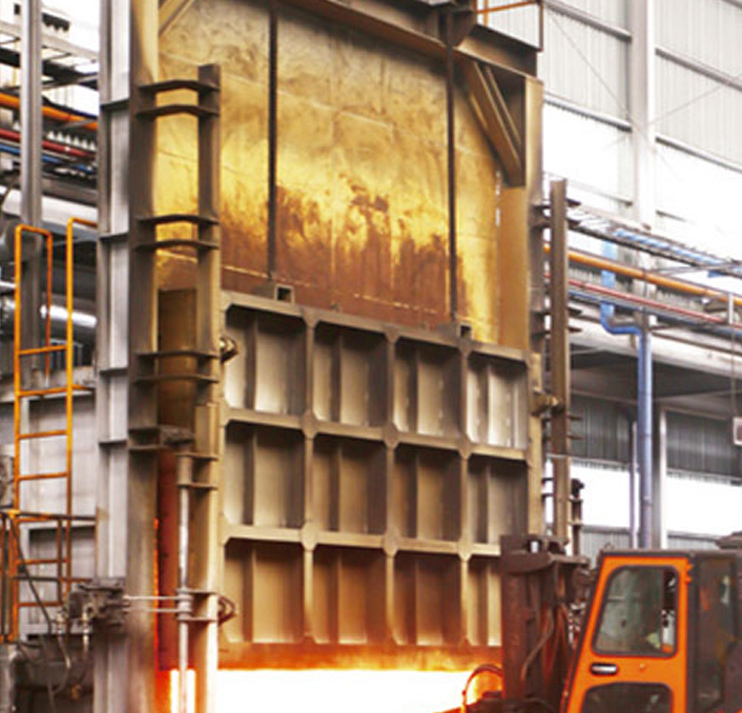

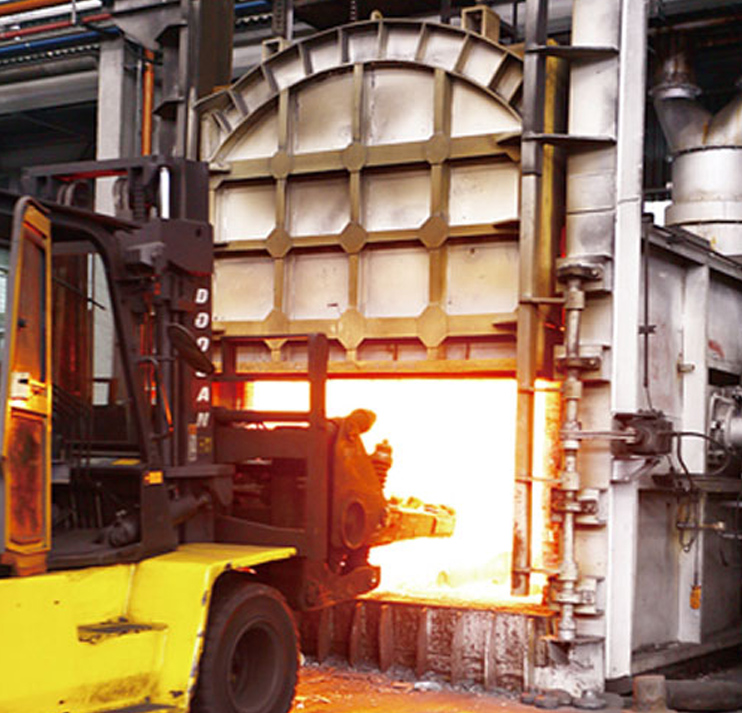

20 and 30ton Heating Furnace (LNG)
10 ton Heating Furnace (LNG)

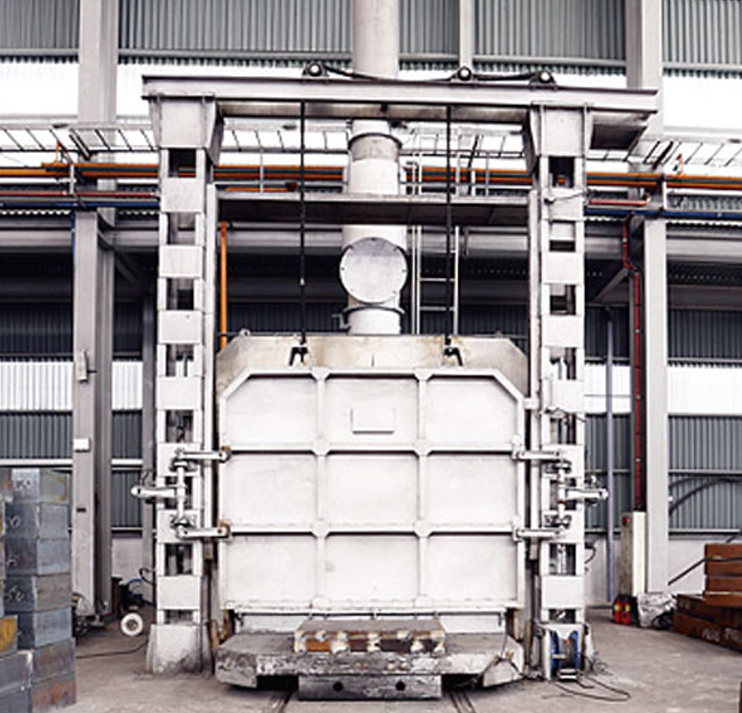

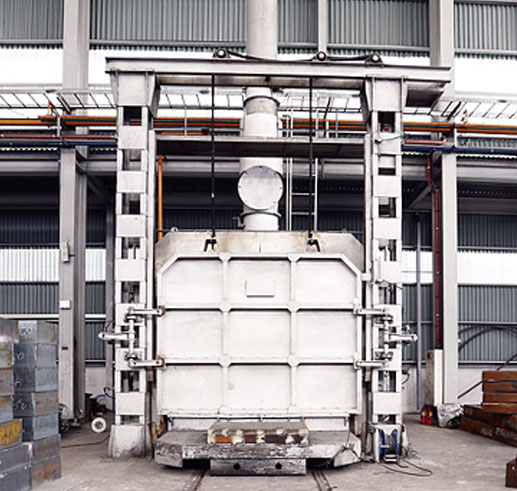

20 ton Heating Treatment (LNG)
| Name | Remarks | Capacity | Q’ty | |
|---|---|---|---|---|
| Heating Furnace (LNG) | DongSung | 1800W*2200L*1600H | 1 | 10Ton |
| Heating Furnace (LNG) | DongSung | 2650W*3000L*1750H | 1 | 20Ton |
| Heating Furnace (LNG) | DongSung | 3000W*4000L*2500H | 2 | 30Ton |
| Heat Treatment (LNG) | DongSung | 2200W*3700L*1800H | 1 | 20Ton |
| Water Quenching Tank | SamSung | 1800W*4000L*1500H | 1 | |
| Water Quenching Tank | SamSung | 1800W*1800L*1500H | 1 | |
| Cooling Tawer | 5 | |||

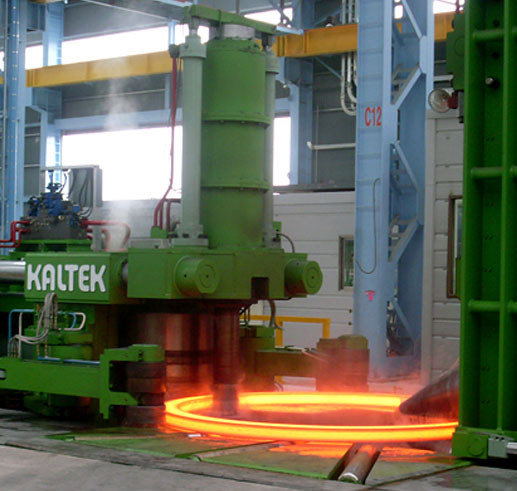

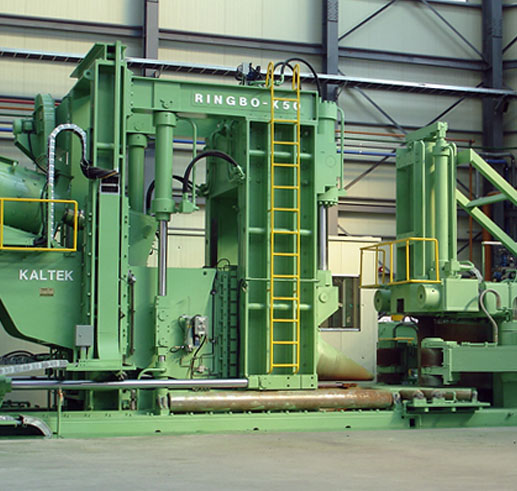

03Ring Rolling Mill H120/v90-2300
Ring Rolling Mill H120/v90-2300
Ring Rolling Mill H120/v90-2300
| Main Roll Power | 120ton |
|---|---|
| Axial Roll Power | 90ton |
| Producible outer diameter | OD500mm ~ OD2300mm |
| Maximum producible weight | 2 tons (based on carbon steel) |
| Maximum height | 550mm |
| Manufacturer | Caltech |
04Cutting
| Name | Maker | Capacity | Q'ty | Remarks |
|---|---|---|---|---|
| Band-saw | Amada | Max. Ø500 | 11 | |
| Band-saw | Amada | Max. Ø1000 | 1 | |
| Band-saw | Amada | Max. Ø700 | 3 | |
| GAS Cutting M/C | YUKWANG | YK-150 | 2 | |
| GAS Cutting M/C | ENSUNG | YK-300 | 6 | |
| Vertical | ENSUNG | Max.6000 | 1 | |
| GAS Cutting M/C | YUKWANG | YK-150 | 4 | |
| Powder Jet M/C | Cheongunsa | 200~350mm | 1 | |
| Dust Collector | Greencon Technology | 1 | For Powder Jet | |
| Radial Drilling M/C | Doosan | DRD-1000 | 2 |
